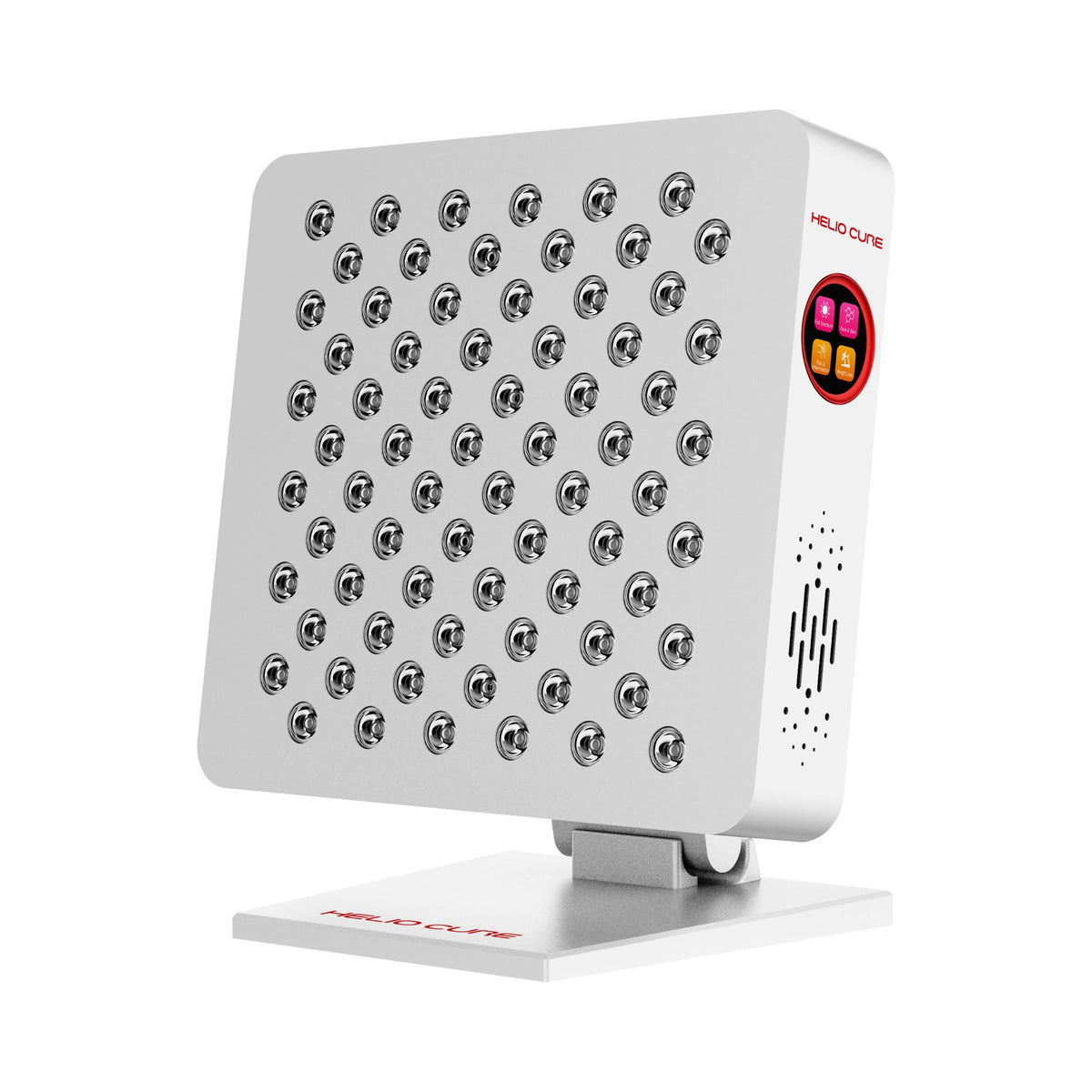

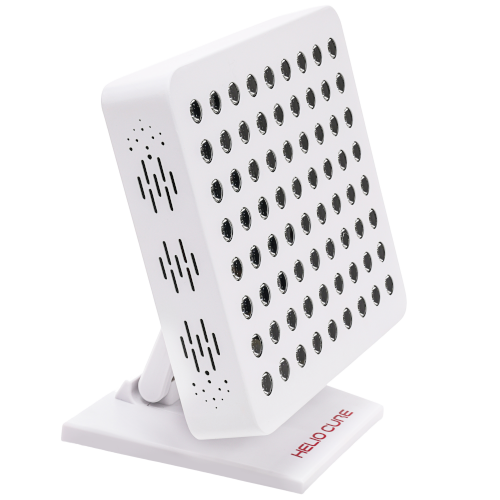

Helio Spark
Helio Spark is a compact red light therapy panel with 6 wavelengths including high-density 1064 nm. Targeted therapy for skin, pain, hair, and mental health. 10 to 20 minutes, anywhere you want.
-
Skin & Anti-Aging
-
Pain & Inflammation
-
Weight Management
-
Mental Health
-
Hair Growth
-
Total Wellness
- $549.00
- $549.00
-
$599.00
Save more than 8%
- Unit price
- per
Subtotal:
$549.00
-
60-Day Risk-Free Trial
-
3-Year Warranty
-
Free U.S. Shipping
Live with it for 60 days. If it doesn't change how you feel, send it back. No questions, no restocking fee. Return Policy →
Wavelengths & Density
All wavelengths listed are dominant wavelengths (λd). Peak wavelengths (λp) are typically 10-20 nm higher.
- Total Wavelength Bands: 6
- Spectral Range:
- Red Spectrum: 630 ± 20 nm and 660 ± 20 nm
- Lower Near-Infrared (NIR): 810 ± 20 nm and 830 ± 20 nm
- Mid Near-Infrared (NIR): 850 ± 20 nm
- Deep Near-Infrared (deep NIR): 1064 ± 20 nm
- LED Density: 38.88% red, 41.66% NIR, and 19.44% deep NIR
- 630 nm: 19.44%
- 660 nm: 19.44%
- 810 nm: 19.44%
- 830 nm: 13.88%
- 850 nm: 8.33%
- 1064 nm: 19.44%

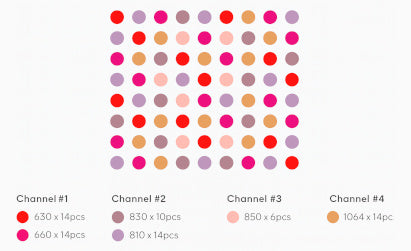

- Channel Mapping:
- Channel 1: Red (630 + 660 nm)
- Channel 2: Lower NIR (810 + 830 nm)
- Channel 3: Mid NIR (850 nm)
- Channel 4: Deep NIR (1064 nm)
- Irradiance
- 71 mW/cm² at 6 inches
- 75 mW/cm² at 12 inches
- 65 mW/cm² at 24 inches
- 49 mW/cm² at 36 inches
- Beam Angle: 19°
- Pulsing: 0 to 5000 Hertz
- Flicker: Imperceptible
- EMF: 0.0 μT at 6 inches onward
- Controls: Touch Screen and Remote Control
- Quick Access Modes (5): Face & Skin, Pain & Inflammation, Weight Loss, Brain Health, Hair
- Advanced Modes: Full Spectrum and Custom Mode
- Custom Mode: Adjust intensity, timing, and pulse frequency (including Nogier) on each channel.
- Number of LEDs: 72
- LED Type: 3535 Single-Chip
- LED Wattage: 5 watts
- LED Lifespan: >100,000 Hours
- Material: Iron

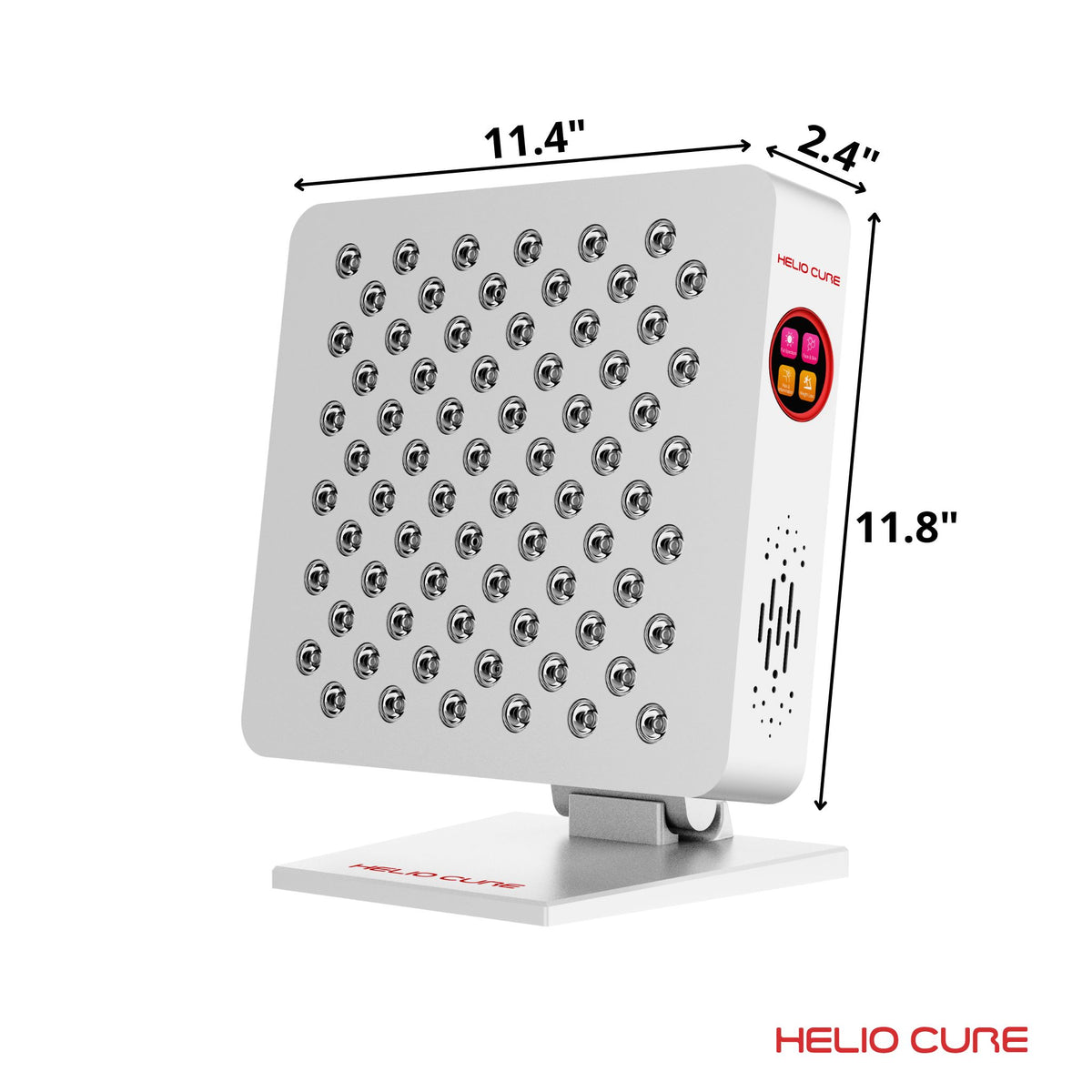

- Panel Size: 11.8 x 11.4 x 2.4 in (300 x 290 x 62 mm)
- Shipped Box Dimensions: 14 x 14 x 7 in (355 x 355 x 180 mm)
- Shipped Weight: 12.1 lb (5.5 kg)
- FDA Registered
- CE and RoHS Certified
- Voltage: AC 100-240 V
- Power Consumption: 120 Watts (typical)

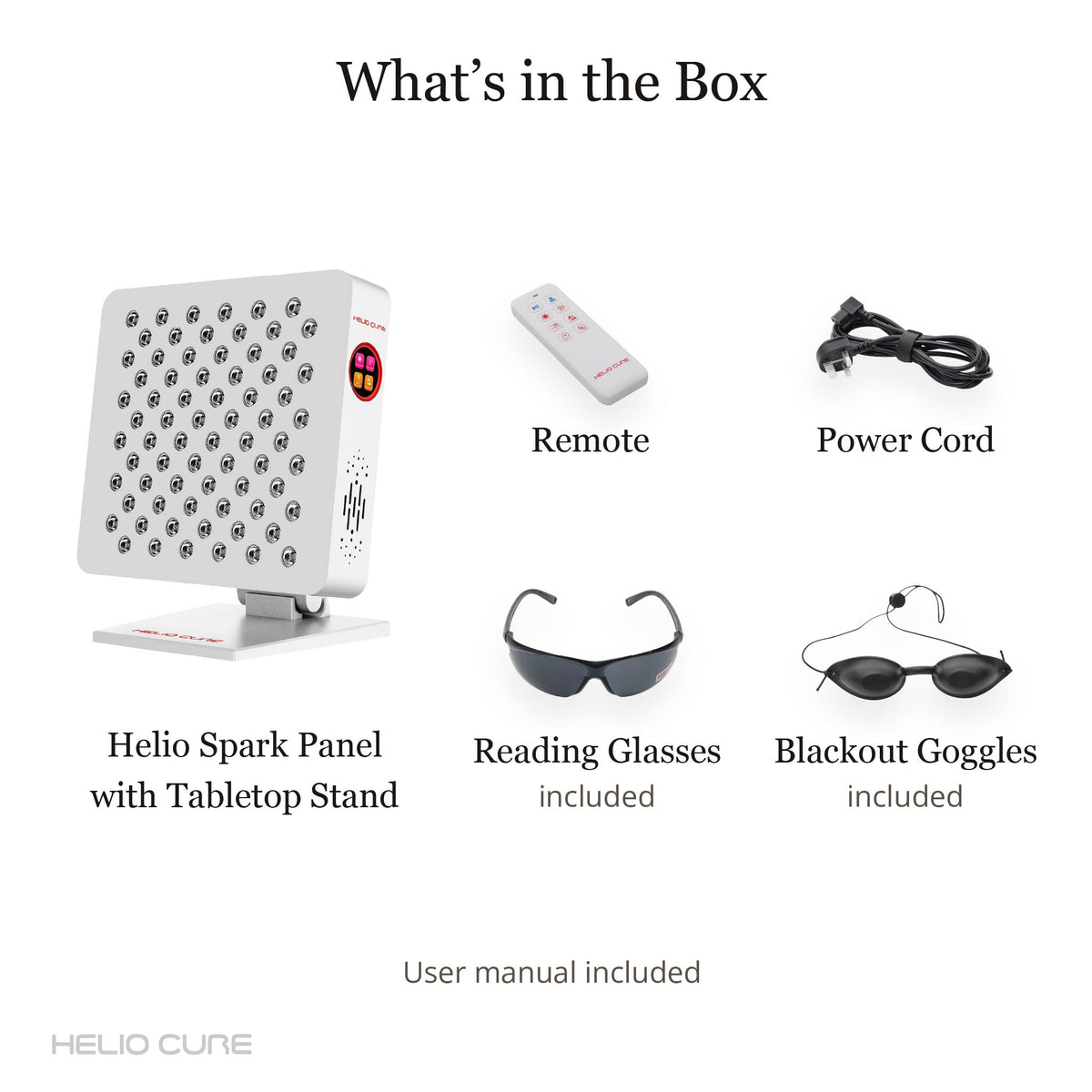

- 1 x Helio Spark Panel with Tabletop Stand
- 1 x Remote Control
- 1 x Power Cable
- 1 x Protective Reading Glasses (included free)
- 1 x Blackout Goggles (included free)
- 1 x User Manual
- 3-Year Warranty: Covers all manufacturing defects.
- Free USA Shipping: Arrives in 3-5 business days.
- 60-Day Returns: Not the right fit? Send it back, no restocking fee.
- Pre-Orders: Ships on the date shown at checkout. Delivery 3-5 business days after dispatch.
They Were You Once.

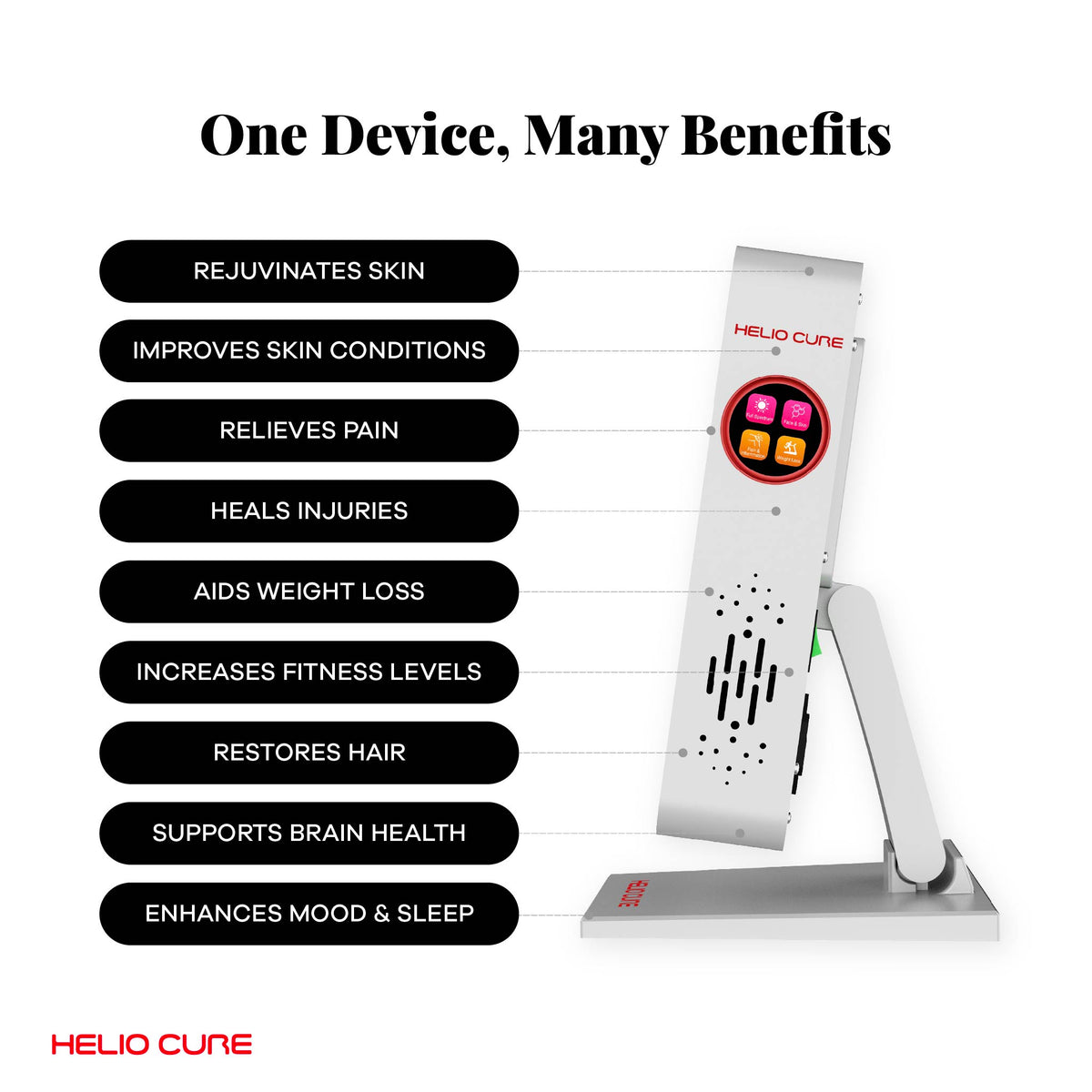

What Helio Spark Can Do
Skin & Anti-Aging
Red and NIR wavelengths boost collagen and reduce inflammation at the surface.
Pain & Inflammation
Deep NIR penetrates joints and muscles to ease chronic and acute pain.
Weight Management
NIR and deep NIR support fat metabolism and body contouring.
Mental Health
NIR and deep NIR reach brain tissue to support mood, focus, and sleep.
Hair Growth
Red and NIR stimulate follicles and improve scalp circulation.
Total Wellness
All 6 wavelengths working together for energy, immunity, and recovery.
Your Condition isn't on This List.
Most aren't. The six modes are starting points, common reasons people come to red light therapy. Custom mode lets you configure wavelength, pulse, and duration for the specific condition you're managing.
If you're not sure what to set, write to us. A specialist will reply within a day, with a protocol drawn from human trial data.
What Makes Helio Spark Different
6 Wavelengths from Human Studies
630, 660, 810, 830, 850, and 1064 nm. Every wavelength selected from human clinical trials. Not animal.
19.44% Deep NIR Density
Nearly 1 in 5 LEDs dedicated to 1064 nm. Reaches muscles, joints, brain, and organs that surface panels miss.
No Blue Light · On Purpose
Blue light disrupts circadian rhythm and has no role in deep tissue therapy. Only red, NIR, and deep NIR.
19° Beam Angle
Focused light that penetrates deeper. Not scattered light that looks bright but wastes energy.
Zero EMF at Use · Imperceptible Flicker
0.0 μT EMF at use distance. Imperceptible flicker measurements verified by LightLab International. Safe for daily use.
Calibrated Presets · Custom Control
5 preset modes and a full spectrum mode, calibrated from human studies. Each mode pre-sets red, NIR, and deep NIR intensities for its target condition. Custom mode lets you adjust intensity, timing, and pulse frequency on each channel, including Nogier frequencies, with full 0-5000 Hz range.
No App · No Tracking · Just Healing
No data collection. No syncing. No accounts. Plug in, choose your mode, and let the light work.
High Irradiance · Honeycomb Design · 100,000+ Hour LEDs · Iron Build · Touch & Remote Control · Travel-Ready
High Irradiance · Honeycomb Design · 100,000+ Hour LEDs · Iron Build · Touch & Remote Control · Travel-Ready
How to Use Helio Spark
Plug in. Pick your mode. Start healing.
Step 1
Set Up
Step 2
Pick Your Mode
Step 3
Start Your Session
Frequently Asked Questions
How quickly will I see results?
Most users notice changes in 2-4 weeks with consistent use. Deeper benefits build over 8-12 weeks. Results vary by person and condition.
What areas can Helio Spark treat?
Helio Spark treats targeted areas such as the face, scalp, joints or specific muscle groups.
Can I treat multiple areas in one session?
Yes. Reposition the panel between areas during a single session. Each area needs 10-20 minutes of direct exposure.
Is Helio Spark portable?

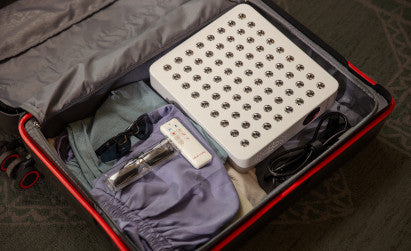

Yes. Helio Spark is compact and lightweight with a tabletop stand. It is designed for home use and travel.
Is Helio Spark safe?
Yes. All Helio Cure devices are FDA-registered and CE/RoHS certified. Independent third-party lab testing by LightLab International. 0.0 μT EMF at use distance. Imperceptible flicker. Protective eyewear included.
